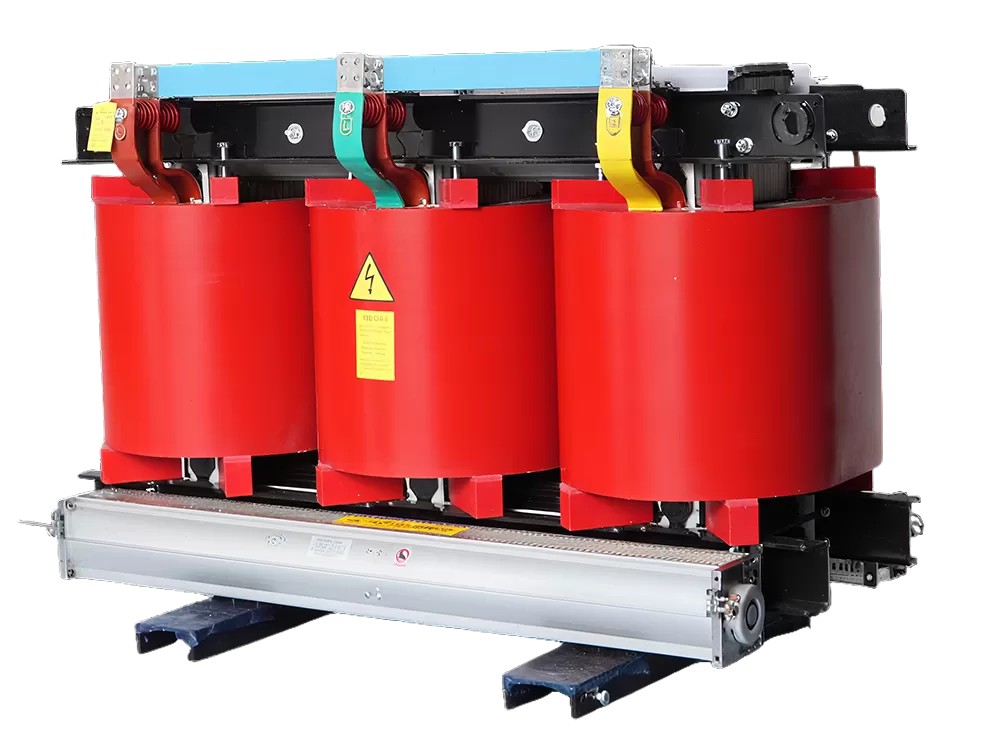

Product OverviewThe SCB12 dry-type transformer is a high-performance, eco-friendly power unit that employs advanced epoxy-resin insulation for excellent diTransformer strength, moisture resistance, and high-temperature endurance.    Its oil-free design delivers superior fire safety, eliminates leakage risks, and prevents environmental contamination—making it ideal for applications demanding the highest safety standards.ApplicationsPerfect for locations with strict requirements for safety, stability, and environmental protection—commercial centers, rail transit, hospitals, data centers, industrial plants, and renewable-energy stations.    The oil-free, fire-retardant construction prevents leakage and fire hazards, enabling reliable, long-term operation in humid, high-temperature, or dusty environments.Product DescriptionHigh-grade, high-permeability silicon-steel core with fully mitered, multi-step lamination for low no-load losses.Self-leveling nano-polyester surface finish reduces audible noise.Water-resistant, high short-circuit withstand capability, strong overload capacity, excellent Transformer al performance, and high safety.Validated by Transformer -field, temperature-field, and magnetic-field simulations; successfully passed KEMA’s E2, C2, and F1 tests.Dual-mode structural options available to satisfy diverse customer requirements.Key FeaturesSafety & reliability: Excellent fire resistance; oil-free design eliminates environmental or fire risks.Environmental protection: No oil coolant required—fully compliant with green-energy and energy-saving standards.Superior cooling: Natural air (AN) or forced air (AF) increases capacity when loads peak.Multi-dimensional thermal control: Innovative 7-level temperature-monitoring technology delivers accurate real-time data, enhancing heat dissipation and operational stability.Main SpecificationsRated voltages: 6 kV, 10 kV, 35 kV and other standard levelsPower range: 50 kVA – 2 500 kVACooling: Natural air (AN) or forced air (AF)Insulation class: F or HApplicable StandardsGB/T 6451-2015 Power transformer technical specificationsGB/T 10228-2015 Dry-type power transformers – Technical parameters & requirementsGB 1094.1-2013 Power transformers – Part 1: GeneralIEC 60076 Power transformersJB/T 10393-2002 Dry-type transformer technical conditionsSCB12 Dry-Type Transformer Parameter Table
