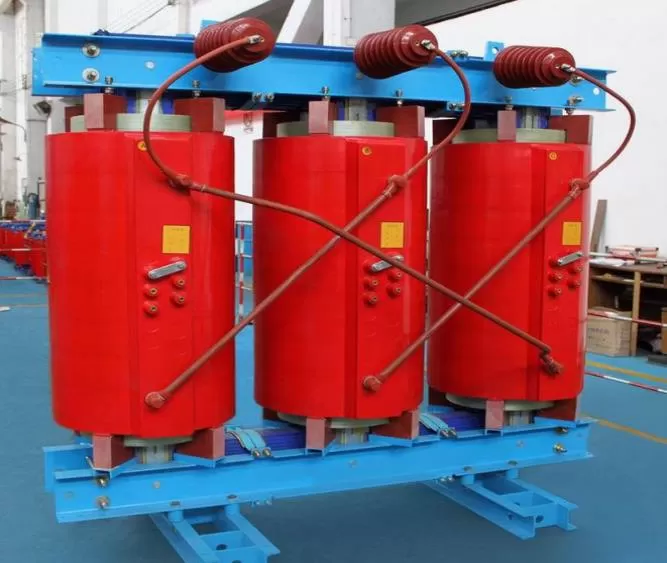

Product OverviewThe SCB14 dry-type transformer offers excellent heat dissipation via both natural air (AN) and forced air (AF) cooling, automatically adjusting to load conditions to ensure long-term, stable operation.  Its rugged construction and superior mechanical strength make it ideal for humid, dusty environments while requiring minimal maintenance—perfect for applications demanding high reliability.ApplicationsPublic venues with strict fire-safety and environmental requirements—high-rise buildings, hospitals, schools, shopping centers.Industrial plants—chemical, metallurgical, and other facilities needing dependable, safe power.Transportation hubs—metro stations and airports where safety and stability are paramount.Product DescriptionHigh-grade, high-permeability silicon-steel core with fully mitered, multi-step lamination for low no-load losses.Self-leveling nano-polyester surface treatment reduces audible noise.Water-resistant, high short-circuit withstand capability, strong overload capacity, excellent Transformer al performance, and high safety.Validated by Transformer -field, temperature-field, and magnetic-field simulations; successfully passed KEMA’s E2, C2, and F1 tests.Key FeaturesInsulation: Vacuum-cast epoxy encapsulation delivers high reliability and long service life.Environmental: Oil-free design eliminates oil contamination, fully meeting green-energy and energy-saving requirements.Mechanical strength & durability: Epoxy-cast windings provide excellent mechanical integrity and withstand high humidity and heavy dust.Maintenance-free operation: SCB series dry-type transformers require no complex upkeep, ideal for sites demanding high reliability with minimal servicing.Main SpecificationsRated voltages: 6 kV, 10 kV, 35 kV, and other standard levelsPower range: 50 kVA – 2 500 kVACooling: Natural air (AN) or forced air (AF)Insulation class: F or HApplicable StandardsGB/T 6451-2015 Power transformer technical specificationsIEC 60076 Power transformersJB/T 10393-2002 Dry-type transformer technical conditionsISO 9001 Quality-management systemGB/T 10228-2015 Dry-type power transformers – Technical parameters & requirementsSCB14 Dry-Type Transformer Parameter Table
