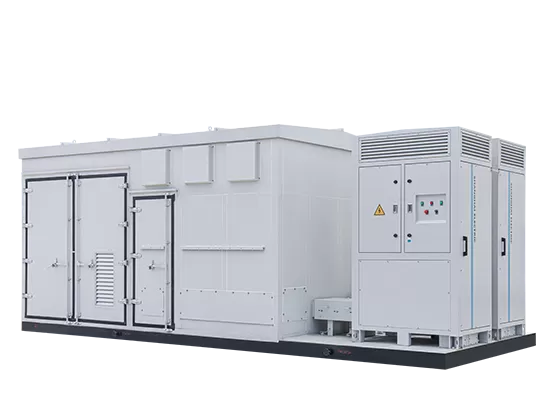

Product OverviewThe all-in-one PCS (Power Conversion System) storage-booster station is a highly integrated solution that combines PV inverters, transformers, and switchgear into a single, factory-tested package.    Housed in a containerized enclosure, it delivers high efficiency, safety, and rapid deployment while offering superior corrosion resistance, thermal insulation, and dust protection for challenging environments.    Compared with traditional “inverter room + PV box” schemes, investment costs are reduced by 15 %–20 %, on-site commissioning time is cut by 50 %, and overall O&M is simplified.ApplicationsIdeal for utility-scale PV plants, wind farms, and battery-storage projects—especially in concentrated PV or large storage applications.    Its compact footprint and environmental ruggedness make it equally suitable for industrial parks, remote mountains, deserts, and coastal regions.Product DescriptionHighly integrated: PV inverter, transformer, and switchgear are factory-assembled and tested, minimizing on-site work and accelerating project completion.Containerized mobility: Standard container housing simplifies transport and lifting; no special equipment required.Superior environmental protection: Weather-resistant steel shell with internal thermal barriers delivers fire, heat, and corrosion protection.Customized solutions: Configurations can be tailored to site conditions and customer requirements, offering one-stop delivery.Key FeaturesHigh safety: Epoxy-cast dry-type transformer is flame-retardant and explosion-proof, certified to C2, E2, and F1 levels.Outstanding economics: 15 %–20 % lower CAPEX, 50 % faster commissioning, and reduced cable/switchgear requirements versus conventional designs.Optimized cooling: Advanced ventilation ensures long-term thermal stability.Long service life: Robust materials and design minimize wear and maintenance costs.Main SpecificationsRated power: 500 kW – 6 300 kWLV side voltage: 0.27 kV / 0.4 kV / 0.69 kVHV side voltage: 10 kV / 35 kVFrequency: 50 Hz / 60 HzOverall efficiency: ≥ 98.5 %Applicable StandardsGB/T 19939-2005 Technical requirements for PV system grid connectionGB/T 50063-2017 Transformer al design code for power installationsGB/T 4208-2017 Degrees of protection provided by enclosure (IP code)GB/T 10228-2015 Dry-type power transformers – Technical parameters & requirementsGB/T 15576-2008 Low-voltage switchgear and controlgear assemblies
